TWiki User Reports

This page contains user reports you can use in TWiki application. Create appealing TWiki applications in a no time!

Reports are of format %USERREPORT{ action="..." ... }%, where the action determines the kind of report. Each report supports additional parameters.

Action: user_list

Show a simple list of registered users. The output is a comma-space delimited sorted list of WikiWords of users (without web prefix), which can be used as input for other reports on this page.

• Action "user_list": Show a list of users as comma-space delimited list of WikiWords.
  • Parameter search: Apply filter by searching all form fields, but not the main topic text. Optional; all users are returned if missing.
  • Parameter limit: Limits the number of users returned. Optional; all users are returned if missing.
  • Parameter sort: Sort the result by the topic name, topic creation date, last modified date, last editor, or named field of TWikiForms. For details see sort parameter of SEARCH.
  • Parameter reverse: Reverse the direction of the search result

This report also sets a "UserReports_users" variable to the number of users found. To retrieve, write %GET{UserReports_users}%.

Usage example:

%USERREPORT{ action="user_list" search="jane" limit="5" }%

Sample output:
AaronTran, AdamHilterbrand, AlexAjlukasiewicz, AlexGutierrez, AlexHu

Action: profile_picture

Show the profile picture image of a user. A default image is returned in case the image is not defined in the Image form field of the user. The output is an <img /> tag that can be embedded in other tags such as links.

• Action "profile_picture": Show the profile picture image of a user.
  • Parameter user: WikiWord of user, required.
  • Parameter width: Width of image, optional.
  • Parameter height: Height of image, optional. The aspect ratio is preserved unless width and height are specified. If width and height are missing, a height of 100 pixels is used.
  • Parameter title: Title parameter of img tag, optional.

Usage example:

%USERREPORT{ action="profile_picture" user="TWikiGuest" height="40" title="TWikiGuest" }%
%USERREPORT{ action="profile_picture" user="AmandaBoris" height="40" title="AmandaBoris" }%

Sample output:


Action: user_sig

Show a user signature with profile picture, optionally followed by a date or other text. A default image is shown in case the image is not defined in the Image form field of the user.

• Action "user_sig": Show a user signature with profile picture.
  • Parameter user: WikiWord of user, required. Optionally followed by a date or other text.
  • Parameter width: Width of image, optional.
  • Parameter height: Height of image, optional. The aspect ratio is preserved unless width and height are specified. If width and height are missing, a height of 18 pixels is used.

In addition, a USERSIG preferences setting is defined as a shortcut, so that a simple %USERSIG{TWikiGuest}% can be used.

Usage example:

-- %USERREPORT{ action="user_sig" user="TWikiGuest - 2024-11-24" }%

-- %USERSIG{TWikiGuest}%

-- %USERSIG{TWikiGuest - 2024-11-24}%

Sample output:
-- TWiki Guest - 2024-11-24

-- TWiki Guest

-- TWiki Guest - 2024-11-24

Action: bubble_sig

Show a faded comment bubble and user signature with profile picture, optionally followed by a date or other text. A default image is shown in case the image is not defined in the Image form field of the user. This is used for CommentPlugin signatures.

• Action "bubble_sig": Show a user signature with profile picture.
  • Parameter user: WikiWord of user, required. Optionally followed by a date or other text.

In addition, a BUBBLESIG preferences setting is defined as a shortcut, so that a simple %BUBBLESIG{TWikiGuest}% can be used.

Usage example:

Test comment using USERREPORT

-- %USERREPORT{ action="bubble_sig" user="TWikiGuest - 2024-11-24" }%

Test comment using BUBBLESIG

-- %BUBBLESIG{TWikiGuest - 2024-11-24}%

Sample output:
Test comment using USERREPORT

-- TWiki Guest - 2024-11-24

Test comment using BUBBLESIG

-- TWiki Guest - 2024-11-24

Action: slim_box

Show slim, one line height user boxes. Several actions are provided:

• Action "slim_box_css": Defines the style sheets of the slim boxes. Optionally include it once per page; it is done for you by the "slim_box_start" action if needed.
• Action "slim_box_start": Defines the start of a set of slim boxes.
  • Parameter style: Optional, overrides the css of the container div of slim boxes. Default: padding:0 5px 0 5px; background-color:#f0f0f4;.
• Action "slim_box": Show a single slim box.
  • Parameter user: Specify the WikiWord of a single user.
  • Parameter style: Optional, overrides the css of the slim box. Default: float: left; width: 130px; border: solid 1px #d0d0d8; background-color: #f8f8fb;.
• Action "slim_box_list": Show a set of slim boxes.
  • Parameter users: Specify a list of WikiWords of users. The list may be provided by including the "user_list" action.
  • Parameter style: Optional, same as action "slim_box".
• Action "slim_box_end": Defines the end of a set of slim boxes.

Usage example:

%USERREPORT{ action="slim_box_start" }%
  %USERREPORT{ action="slim_box" user="TWikiGuest" }%
  %USERREPORT{ action="slim_box" user="JaneSmith" }%
%USERREPORT{ action="slim_box_end" }%
%USERREPORT{ action="slim_box_start" style="background-color: #f0f0e8;" }%
  %USERREPORT{ action="slim_box_list" users="UserOne, UserTwo, UserThree" }%
%USERREPORT{ action="slim_box_end" }%

Sample output:

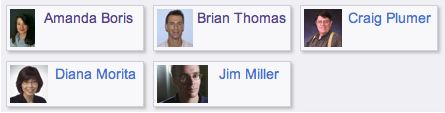

Action: small_box

Show small, two line height user boxes. Several actions are provided:

• Action "small_box_css": Defines the style sheets of the small boxes. Optionally include it once per page; it is done for you by the "small_box_start" action if needed.
• Action "small_box_start": Defines the start of a set of small boxes.
  • Parameter style: Optional, overrides the css of the container div of small boxes. Default: padding:0 5px 0 5px; background-color:#f0f0f4;.
• Action "small_box": Show a single small box.
  • Parameter user: Specify the WikiWord of a single user.
  • Parameter style: Optional, overrides the css of the small box. Default: float: left; width: 130px; border: solid 1px #d0d0d8; background-color: #f8f8fb;.
• Action "small_box_list": Show a set of small boxes.
  • Parameter users: Specify a list of WikiWords of users. The list may be provided by including the "user_list" action.
  • Parameter style: Optional, same as action "small_box".
• Action "small_box_end": Defines the end of a set of small boxes.

Usage example:

%USERREPORT{ action="small_box_start" }%
  %USERREPORT{ action="small_box" user="TWikiGuest" }%
  %USERREPORT{ action="small_box" user="JaneSmith" }%
%USERREPORT{ action="small_box_end" }%
%USERREPORT{ action="small_box_start" style="background-color: #f0f0e8;" }%
  %USERREPORT{ action="small_box_list" users="UserOne, UserTwo, UserThree" }%
%USERREPORT{ action="small_box_end" }%

Sample output:

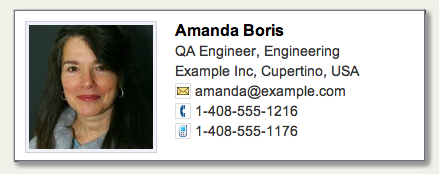

Action: business_card

Show users in business card format. Several actions are provided:

• Action "business_card_css": Defines the style sheets of the business cards. Optionally include it once per page; it is done for you by the "business_card_start" action if needed.
• Action "business_card_start": Defines the start of a set of business cards.
  • Parameter style: Optional, overrides the css of the container div of business cards. Default: padding:10px 15px 1px 15px; background-color:#f0f0f4;.
• Action "business_card": Show a single business card.
  • Parameter user: Specify the WikiWord of a single user.
  • Parameter style: Optional, overrides the css of the business card. Default: float: left; width: 410px; border: solid 1px #d0d0d8; background-color: #fff;.
• Action "business_card_list": Show a set of business cards.
  • Parameter users: Specify a list of WikiWords of users. The list may be provided by including the "user_list" action.
  • Parameter style: Optional, same as action "business_card".
• Action "business_card_end": Defines the end of a set of business cards.

Usage examples:

%USERREPORT{ action="business_card_start" }%
  %USERREPORT{ action="business_card" user="TWikiGuest" }%
  %USERREPORT{ action="business_card" user="JaneSmith" }%
%USERREPORT{ action="business_card_end" }%
%USERREPORT{ action="business_card_start" style="background-color: #f0f0e8;" }%
  %USERREPORT{ action="business_card_list" users="UserOne, UserTwo, UserThree" }%
%USERREPORT{ action="business_card_end" }%

Sample output:

Action: select_one_user

Show a selector to pick a user, for use in HTML forms.

• Action "select_one_user": Selector to pick a user.
  • Parameter name: Name of form field, required.
  • Parameter selected: WikiWord name of a user, optional.
  • Parameter users: Specify a list of WikiWords of users, optional. The list may be provided by including the "user_list" action. All registered users are shown if the parameter is missing.
  • Parameter firstoption: Label of first option, optional. Default: Select...
  • Parameter firstvalue: Value of first option, optional. Default: empty value

Usage example:

<form>
%USERREPORT{ action="select_one_user" name="Owner" selected="TWikiGuest" }%
</form>

Sample output:

Select... Aaron Tran Adam Hilterbrand Alex Ajlukasiewicz Alex Gutierrez Alex Hu Alexa Morton Alexander Boulgakov Alvaro Rodriguez Aneesa Bhakta Anthony Vandieren Aurko Dasgupta Austin Meyer Aziz Al Khafaji Ben Slater Bibiana Toro Brendan Floyd Brian Renda Cameron Roots Camilo Gomez Catherine Mortensen Colin Brown Craig Barnhart Dacia Leon Daniel Deatherage Daniel JAcosta David Lipps Dennis Mishler Devin Wehle Dillon Edwards Eleanor Young Elizabeth Manriquez Elizabeth Robinson Ella Watkins Emmanuel Chavarria Eric Bryan Erik Quandt Farhana Haque Gabriel Suarez Gabriel Wu Geoff Colburn Grace Stark Hannah Cole Ira Zibbu Isaac Gifford Jack Dwenger Jacob Risch Jaimie Kepner Jan Ramesh Jared Carlson Stevermer Jared Eller Jeffrey Barrick Jeffrey Chuong Jenna Mc Guffey Jordan Monk Joseph Reitman Julie Perreau Kadena Cope Kaitlin Shin Kate Elston Katelyn Corley Kyle Dugan Laila Phillips Lindsey Wolf Logan Bachman Lucio Navarro Lucy Leblanc Mark Kauth Matt Bourneuf Matt Mc Guffie Matt Strand Matthew Hooper Meghna Vergis Michael Hammerling Nathan Shin Neil Gottel Noor Radde Patrick Lariviere Paul Amador Peng Geng Pranesh Rao Pyung Cheon Lee Raghuvarun Mutyala Razan Alnahhas Ryan Bockoven Ryan Lannan Salma Omar Sarah Bialik Sean Leonard Simon DAlton Simon DOelsnitz Sophia Lin Spencer Hamrick Stella Wang Steve Sowa Stratton Georgoulis Thomas Wall Tung To Tyler De Jong Victor Li Vinicio Reynoso

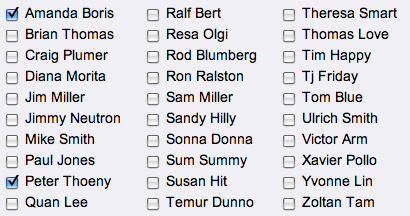

Action: select_users

Show rows of checkboxes to select users, for use in HTML forms.

• Action "select_users": Set of checkboxes to select users.
  • Parameter name: Name of form field, required.
  • Parameter selected: List of WikiWord names indicating the selected users, optional.
  • Parameter users: Specify a list of WikiWords of users, optional. The list may be provided by including the "user_list" action. All registered users are shown if the parameter is missing.
  • Parameter colums: Define number of columns, optional. Default: 5
  • Parameter style: Set the css of the container div, optional. Default: margin: 0; border: 1px solid transparent;

Usage example:

<form>
%USERREPORT{ action="select_users" name="Members" selected="TWikiGuest, AmandaBoris" }%
</form>

Sample output:

Aaron Tran Adam Hilterbrand Alex Ajlukasiewicz Alex Gutierrez Alex Hu Alexa Morton Alexander Boulgakov Alvaro Rodriguez Aneesa Bhakta Anthony Vandieren Aurko Dasgupta Austin Meyer Aziz Al Khafaji Ben Slater Bibiana Toro Brendan Floyd Brian Renda Cameron Roots Camilo Gomez Catherine Mortensen

Colin Brown Craig Barnhart Dacia Leon Daniel Deatherage Daniel JAcosta David Lipps Dennis Mishler Devin Wehle Dillon Edwards Eleanor Young Elizabeth Manriquez Elizabeth Robinson Ella Watkins Emmanuel Chavarria Eric Bryan Erik Quandt Farhana Haque Gabriel Suarez Gabriel Wu Geoff Colburn

Grace Stark Hannah Cole Ira Zibbu Isaac Gifford Jack Dwenger Jacob Risch Jaimie Kepner Jan Ramesh Jared Carlson Stevermer Jared Eller Jeffrey Barrick Jeffrey Chuong Jenna Mc Guffey Jordan Monk Joseph Reitman Julie Perreau Kadena Cope Kaitlin Shin Kate Elston Katelyn Corley

Kyle Dugan Laila Phillips Lindsey Wolf Logan Bachman Lucio Navarro Lucy Leblanc Mark Kauth Matt Bourneuf Matt Mc Guffie Matt Strand Matthew Hooper Meghna Vergis Michael Hammerling Nathan Shin Neil Gottel Noor Radde Patrick Lariviere Paul Amador Peng Geng Pranesh Rao

Pyung Cheon Lee Raghuvarun Mutyala Razan Alnahhas Ryan Bockoven Ryan Lannan Salma Omar Sarah Bialik Sean Leonard Simon DAlton Simon DOelsnitz Sophia Lin Spencer Hamrick Stella Wang Steve Sowa Stratton Georgoulis Thomas Wall Tung To Tyler De Jong Victor Li Vinicio Reynoso

Note to Maintainer:

• This topic has user report sections intended for TWiki application developers.
• This topic uses more user friendly ParameterizedVariables %USERREPORT{ action="foo" ... }% instead of the more verbose parameterized include %INCLUDE{ "%SYSTEMWEB%.UserReports" section="foo" ... }%.
• If you add a section to this topic, or add a parameter to a section, make sure to keep the parameterized variables settings in TWikiPreferences#ParameterizedVariables in sync.

Related topics: TWikiGroups, TWikiUsers, UserList, UserListByDateJoined, UserListByLocation, VarUSERREPORT, TWikiUserMappingContrib

-- TWiki:Main.PeterThoeny - 2014-10-04
