Designing a new part

Golden Gate Assembly Step 1: Creating dsDNA encoding the part for cloning Two variations on preparing a dsDNA fragment with the proper restriction sites and Golden Gate overhangs are provided in the next sections. The end result is the same: a piece of DNA with the proper flanking regions for BsmBI cloning into the entry vector, while maintaining the BsaI sites used in first stage assembly – with proper overhangs for the type of part that you are designing.

Method 1: Synthesizing dsDNA containing the required flanking regions

When ordering a double-stranded piece of DNA to be synthesized, you can just append the sites needed for cloning in your order. Use this protocol when ordering a gBlock from IDT, for example.


Replace XXXX with the prefix-F sequence for the part type you are designing ( see the table and notes below). Similarly, replace YYYY with the suffix-F sequence for the part.

In general, the amount of DNA synthesized is sufficient for cloning into the entry vector without further PCR amplification of a gBlock.

Method 2: Amplifying a sequence with primers that add the required flanking regions

You need to order two primers that append sequences to the ends of the DNA sequence that you are amplifying. If your template looks like the following, then you should design the two primers like the examples.


3'-uuuuuuuuuuuuuuuuuuuu your part ddddddddddddddddddd-5'

Primer 1 (forward)


Primer 2 (reverse)


CAUTION In Primer 2, the priming site (dddd...) must be the reverse-complement of your part and you must use the suffix-R sequence for the Golden Gate part overlap because this is on the other strand.

The overlap with the template can vary from the 20 base pairs that are shown according to the normal rules for designing good PCR primers. If calculating melting temperatures, be sure to only include the overlap region in your calculations, not the stuff that is being added to the ends!

Example PCR Reaction

  • PCR Insert
  • Use standard 25ul Phusion (or other high fidelity polymerase) protocol
  • PCR (25ul reaction)
  • 5 ul 5x Buffer
  • 1.5 ul dntps
  • 1.25 ul primer (A+C)
  • 1.25 ul primer (B+D)
  • x ul template plasmid (<250ng)

ddH20 to 24.5 Ál

then add 0.25 Ál Phusion

Set elongation time according to size of insert. Purify PCR products

CAUTION The plasmid you are constructing in the entry vector (pYTK001) is camR, so if your template plasmid also encodes chloramphenicol resistance, you should DpnI digest after your PCR reaction, and probably also gel purify the fragment, as any residual plasmid may be transformed and lead to false-positive colonies.

Part Overlap Quick Reference Table

These part overhangs are used by the YTK (yeast toolkit) and the BTK (Bee microbiome toolkit). More information on the design of parts for Golden Gate assembly using these standards can be found in the reference to the YTK (especially in the supplement). Be aware that some definitions vary between the two toolkits.

Use the shiny app here for help designing appropriate primers to add part prefixes and suffixes.

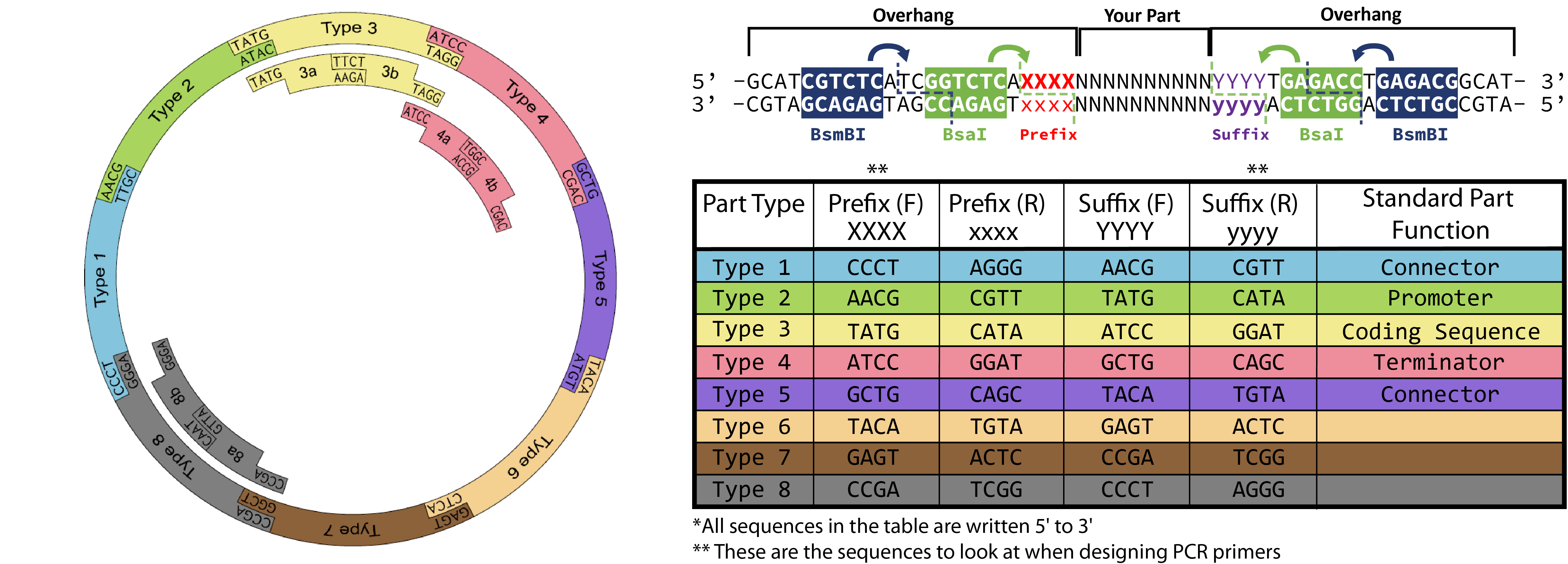

Type Description Prefix (F) (XXXX) Prefix (R) (xxxx) Suffix (F) (YYYY) Suffix (R) (yyyy) Notes
2 promoter + RBS AACG cgtt TATG cata
3 (BTK) gene TATG cata ATCC ggat The start codon (ATG) is within the prefix. After that, begin your protein coding sequence in-frame with the second codon. BTK: Include the stop codon for your gene!.
3 (YTK) gene TATG cata GGATCC ggatcc The start codon (ATG) is within the prefix. After that, begin your protein coding sequence in-frame with the second codon. YTK: Omit the stop codon. It is typically placed in the next part. For that stop codon to be in-frame, you must end this part with the two bases GG so that plus the suffix encode a Gly-Ser linker/extension.
4 (BTK) terminator ATCC ggat GCTG cagc
4 (YTK) stop codon + terminator ATCCTAA ttaggat GCTG cagc The first three bases within the part should be a stop codon (TAA).

  • All sequences in the table are written 5' to 3'.
  • YTK: yeast toolkit; BTK: bee microbiome toolkit.
  • Standard bases that are added before or after the actual Golden Gate overhang in prefix / suffix to maintain part function are shown in red.
